[Verilog] Basic Concept

Lexical Conventions ( 어휘 표기법)

• Whitespace
  Blank spaces (\n), tabs(\t), and newlines (\n)

• Comments
  One line : //
  Multiple line : /* */

• Operator
  1. Unary : operand가 한 개
     ex) ~(not)
  2. Binary : operand가 두 개
     ex) &&, +, - …
  3. Ternary : operand가 세 개
     ex) ? :

• Number Specification
  1. Sized Number
     <size>’<base format><number>
     12’habc ⇒ 12bit hexadecimal abc( 4 * 3 )
     4’b0000 ⇒ 4 bit binary 0000
  2. Unsized Number
     no <size> and <base format>
     23456 ⇒ 32bit
  3. X or Z values
     X : unknown value ( 값이 존재하는데 모르는 것)
     12’h13x : 0001 0011 xxxx ( x는 0과 1 아무거나 가능)
     Z : high impedance value ( 값이 없는 것 / HW : 선이 끊어진 것을 의미)
  4. Underscore : 가독성을 위한 밑줄 추가 가능





• Strings
  a sequence of character that are enclosed by double quotes(””)
  “Hello verilog”

• Identifiers and Keywords
  identifier : names given to objects referenced in designs
  keyword : special identifiers reserved to define the language constructs



Data Types

• Value Set

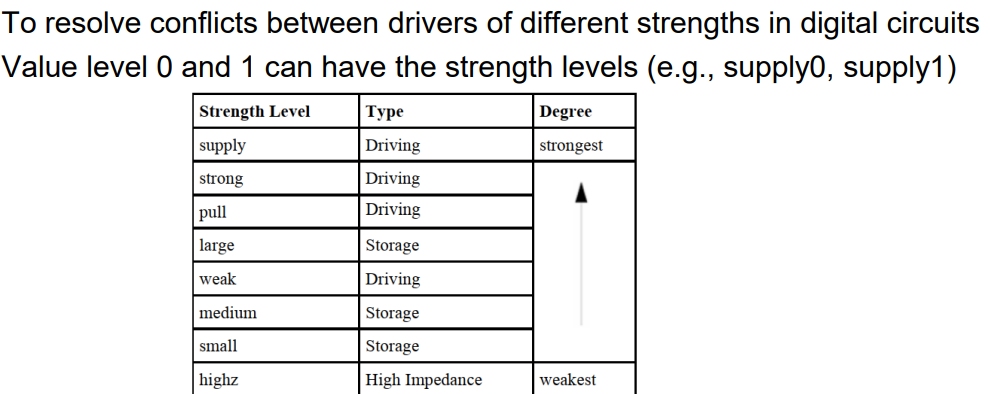

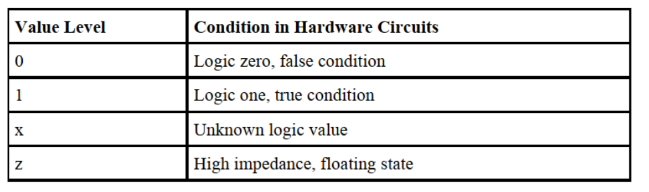

위에서 말했듯이 x는 아직 알지 못하는 것 (0과 1 둘다 가능), z는 불가능한 것을 의미한다.

• Net
  declared with the keyword “wire”
  connection between hardware element → 진짜 말 그대로 전선을 생각하면 쉽다.

wire a;
wire b, c;
wire d= 1'b0;



• Registers
  declared with the keyword “reg”
  data storage elements and retain value

reg reset;
initial
begin
	reset = 1'b1;
	#100 reset = 1'b0;
end

100 times가 지난 시점에 reset 값을 1’b1 → 1’b0 로 변경하고 있다.

Do not confuse the term registers in Verilog with hardware registers



• Vectors ( multiple bit width)
  nets or reg data types → vector로 표현 가능
  [high# : low#] or [low#:high#]
  left number is always MSB of the vector
  1. vector part select

  wire [7:0] bus;
  bus[2:0]
  bus[0:2] //error



  1. vectors (cont’d)
  [starting_bit + : width] → part-selected increasements from starting
  [starting_bit - : width] → part-selected decrements from starting

reg [255:0] data1; //little endian
reg [0:255] data2; //big endian

byte = data1[31-:8]; //data[31:24]
byte = data2[31-:8]; //data[24:31]

//선언할 때 endian에 따라 순서가 결정된다.



• integer
  general purpose register data type

• real
  real register data types are declared with the keyword real

• time
  a time data type is used to save simulation time



• arrays
  array와 vector는 비슷한 기능을 가지지만 차이점이 있다.

reg [4:0] port_id[0:7]; // 5bit 짜리 reg가 8개
array_4d[0][0][0][0][15:0] = 0; //[15:0] -> part select

• Memories
  : Memories are modeled as a one-dimensional array of reg
• Parameters
  constants to be defined in a module by the keyword parameter
  Parameters cannot be used as variable.

  1. local parameters
     keyword : localparam
     define parameters when their values should not be changed
• String
  can be stored in reg
  each character in the string takes up 8 bits (1byte)



reg [8 * 18 : 1] string_value;
initial
	string_value = "Hello Verilog World";



System Tasks

standard system tasks
appear in the form $<keyword>

• display
  main system for displaying values of variables // 기본적으로 줄 바꿈을 해줌

$display(p1, p2, p3, ... )
$display("%d", num);

• monitor
  monitor a signal when its value changes

$monitor($time, "Value of clock : %d " , clock);

//clock의 값이 바뀔 때 마다 출력한다.

• Stop
  provide to stop during a simulation
• finish
  terminates the simulation



Compiler Directive

• define
  used to define text macros in Verilog
  C언어의 #define의 역할과 동일함.
• include
  include entire contents of a source file in another Verilog file
